 | Receiver Specification | US-8001D | | Frequency Preparation | PLL Synthesized Control | | Carrier Frequency Range | 494 MHz ~ 870 MHz | | S/N ratio | > 105dB | | T.H.D (1 KHz) | <0.6 % @ 1KHz | | Display | LED | | Display Contents | Antenna A/B, RF/AF Status | | Controls | Power ON/OFF Channel Selector, Audio Level | | Audio Output Level | -12 dB | | AF output Impedance | 600 Ohm | | Squelch | Pilot Tone & Noise Mute | | Operation Voltage | 12-18 VDC, 600mA | | Output Connector | 1 Balanced XLR Socket Unbalanced 6.3mm phone jack | | Dimension (m/m) | 221mm(W)*40mm(H)*152mm(D) |
|
|
|

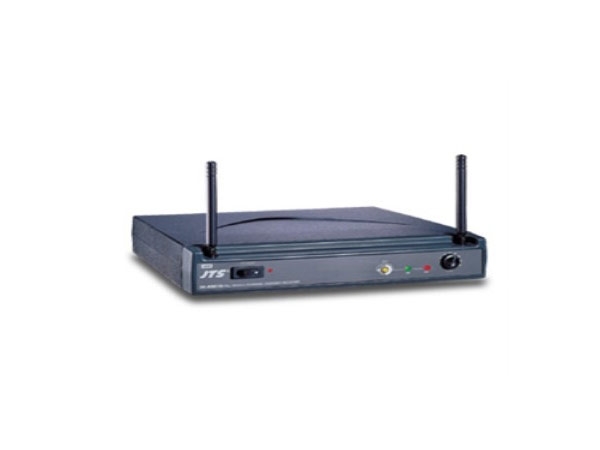

| Receiver Specification US-8001D |
| |
|
 | Frequency Preparation | PLL Synthesized Control | | Carrier Frequency Range | 494 MHz ~ 870 MHz | | S/N ratio | > 105dB | | T.H.D (1 KHz) | <0.6 % @ 1KHz | | Display | LED | | Display Contents | Antenna A/B, RF/AF Status | | Controls | Power ON/OFF Channel Selector, Audio Level | | Audio Output Level | -12 dB | | AF output Impedance | 600 Ohm | | Squelch | Pilot Tone & Noise Mute | | Operation Voltage | 12-18 VDC, 600mA | | Output Connector | 1 Balanced XLR Socket 1 Unbalanced 6.3mm phone jack | | Dimension (m/m) | 221mm(W)*40mm(H)*152mm(D) |
|
|
|

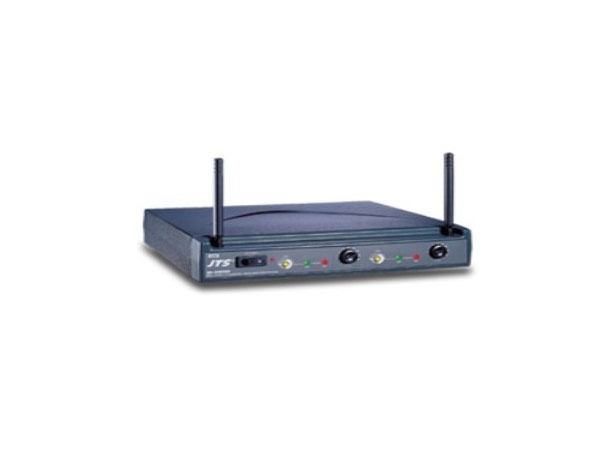

| Receiver Specification US-8002D |
| |
|
|
 MODEL | GM 5218 | | Type Back | Electret Condenser | | Frequency Response | 80 ~ 18,000 Hz | | Polar Pattern | Cardioid,Supercardioid,Omnidirectional | | Output Level(at 1,000Hz | Open circuit voltage: -56¡Ó3 dB* (1.58mV)*0dB=1V /£gbar | | Impedance | Rated impedance is 220O | | MAX. SPLfor 1% THD | 125dB | | Output Connector | GML-5206/GML-5212/GML-5218 : XLR(M) type power module) | | Power Supply | 9-52 VDC Phantom power(LED standard operation voltage 48V) or battery power 3V(1.5V * 2) | | Gooseneck Length | GML-5206 6"(152mm) GML-5212 12"(305mm) GML-5218 18"(475mm) |
|
|
|

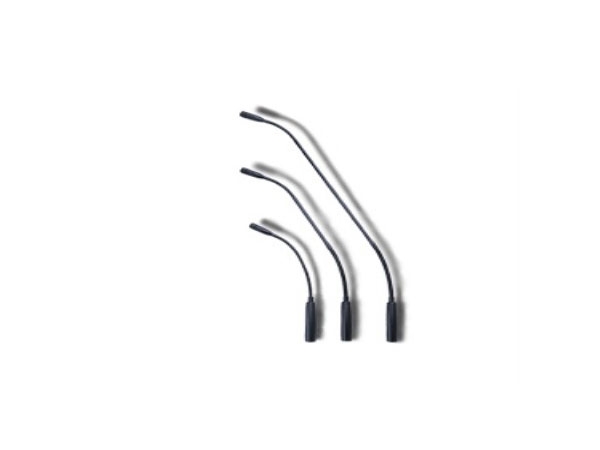

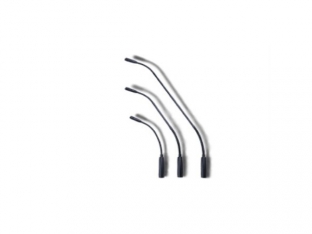

| GM 5218 |
| |
|
 | | MODEL | CX-08S | | Type | Moving Coil Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 50~16,500Hz | | Sensitivity (at 1,000Hz) | -72dB*(0.25mV)*0dB=1V/£g bar | | Impedance | 600 Ohm ¡Ó30% | | Net Weight | 250grams (8.60 oz) |
|
|
|
|

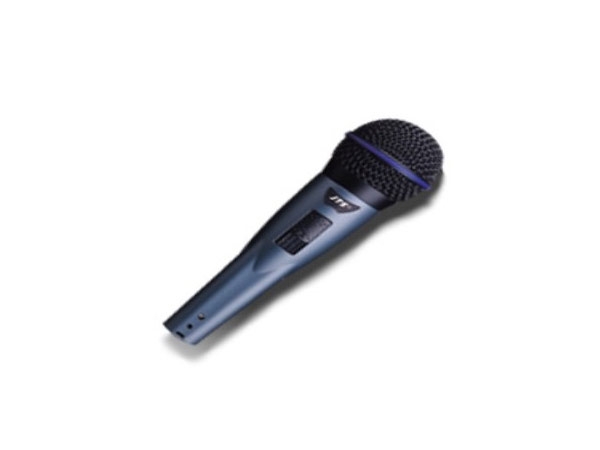

| CX-08S |
| |
|
|
 | | | MODEL | Tk-280 | | Type | Moving Coil Dynamic | | Frequency Response | 80 ~ 12,000 Hz | | Polar pattern | Cardioid, rotationally symmetrical about microphone axis, uniform with frequency | | Output Level [at 1,000Hz] | Open circuit voltage: -75dB*0dB = 1V / £g bar | | Output Impedance | Rated impedance 600 Ohm for connection to Microphone inputs rated low Z.
|
|
|
|
|

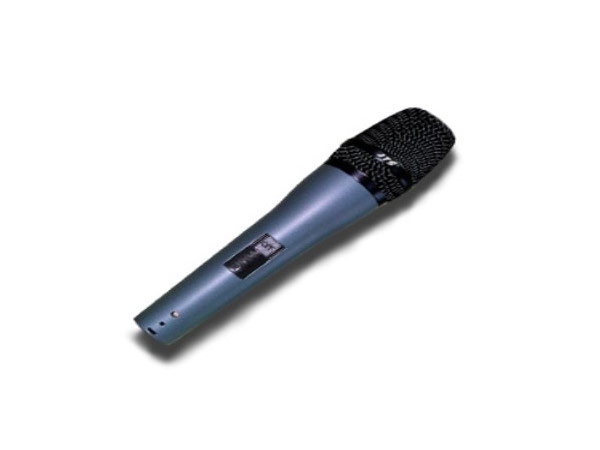

| Tk-280 |
| |
|
|
|
